hortonworks-HDF day 3 (Apache NiFi custom processor)

custom processor

建立一個目錄

建立 ChakraProcessor
/Volumes/Transcend/1-eclipse-workspace/test-workspace/ChakraProcessor

進入目錄內，下 maven 指令

mvn archetype:generate

會問說要找那個 archetype，輸入 nifi

Choose a number or apply filter (format: [groupId:]artifactId, case sensitive contains): 1198: nifi
Choose archetype:
1: remote -> org.apache.nifi:nifi-processor-bundle-archetype (-)
2: remote -> org.apache.nifi:nifi-service-bundle-archetype (-)

選 1 後，然後選版本 1.4.0，輸入 25 (1.5 及 1.6 mvn install 會失敗需再研究)

Choose a number or apply filter (format: [groupId:]artifactId, case sensitive contains): : 1
Choose org.apache.nifi:nifi-processor-bundle-archetype version:
0.0.2-incubating
0.1.0-incubating
0.2.0-incubating
0.2.1
0.3.0
0.4.0
0.4.1
0.5.0
0.5.1
0.6.0
0.6.1
0.7.0
0.7.1
0.7.2
0.7.3
0.7.4
1.0.0-BETA
1.0.0
1.0.1
1.1.0
1.1.1
1.1.2
1.2.0
1.3.0
1.4.0
1.5.0
1.6.0


Choose a number: 27: 25

輸入 groupId 及 artifactId 等資訊

Define value for property 'groupId': mynifi
Define value for property 'artifactId': myprocessors
Define value for property 'version' 1.0-SNAPSHOT: : 1.0
Define value for property 'artifactBaseName': demo
Define value for property 'package' mynifi.processors.demo: :
[INFO] Using property: nifiVersion = 1.6.0
Confirm properties configuration:
groupId: mynifi
artifactId: myprocessors
version: 1.0
artifactBaseName: demo
package: nifiVersion = 1.6.0
nifiVersion: 1.6.0
 Y

執行結果

抓下來的目錄結構

修改 MyProcessor.java 加上一些 Log

@Override
public void onTrigger(final ProcessContext context, final ProcessSession session) throws ProcessException {
    FlowFile flowFile = session.get();
    if ( flowFile == null ) {
        return;
    }
    // TODO implement
    System.out.println("****** MyProcessor_Received a flow file ......");
    getLogger().info("####### INFO MyProcessor_Received a flow file ......");
    getLogger().debug("####### DEBUG MyProcessor_Received a flow file ......");
    getLogger().error("####### ERROR MyProcessor_Received a flow file ......");
    session.transfer(flowFile , MY_RELATIONSHIP);
}

mvn install

到 /Volumes/Transcend/1-eclipse-workspace/test-workspace/ChakraProcessor/myprocess 這層下 install
```
mvn install
```

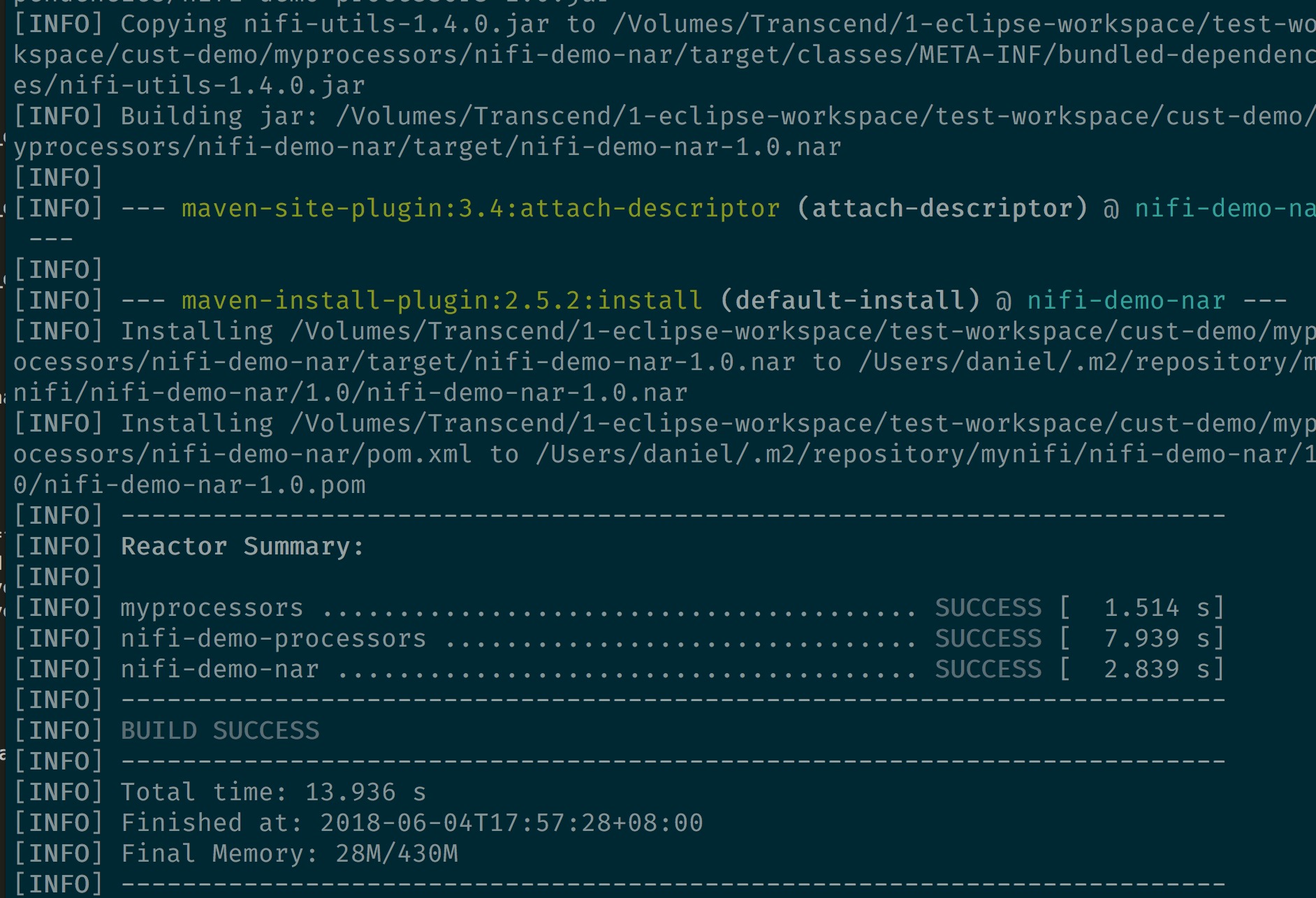

執行成功的目錄結構

將 compiler 成功的 nar 檔丟到 nifi 的 lib 底下

compiler 的 nar :
/Volumes/Transcend/1-eclipse-workspace/test-workspace/cust-demo/myprocess/nifi-demo-nar/target/nifi-demo-nar-1.0.nar
sandbox nifi 的 lib 路徑 :
/usr/hdf/3.1.0.0-564/nifi/lib
連進 sandbox 指令 :
ssh root@localhost -p 2222

copy file 到 sandbox 指令

daniel@Danielde-MBP > /Volumes/Transcend/1-eclipse-workspace/test-workspace/cust-demo/myprocess/nifi-demo-nar/target > scp -P 2222 nifi-demo-nar-1.0.nar root@localhost:/usr/hdf/3.1.0.0-564/nifi/lib
root@localhost's password:
nifi-demo-nar-1.0.nar                             100%  143KB   3.0MB/s   00:00
